Power Supply Systems -

Crane Power Supply Systems

Our crane power supply systems are designed to provide safe and reliable power to cranes of all types and sizes. We offer a range of solutions, including insulated conductor bar systems, bare conductor bar systems, and cable festoon systems.

Our crane conductor bar system is designed to provide power to overhead cranes and other types of mobile equipment. It is a reliable and flexible system that allows for easy installation and maintenance. Our conductor bar system is available in various sizes and configurations to meet the needs of different applications.

Open Conductor Systems

The standard version is a copper bar mounted onto a T-Shaped steel beam. The copper bar transfers the electrical current safely while the T-bar provides a robust and reliable mount
• Robust design suitable for any environment
• Low maintenance equals cost savings
• Curve sections available for custom applications
• Ideal solution for high voltage/amperage requirements

CONTACT NOW

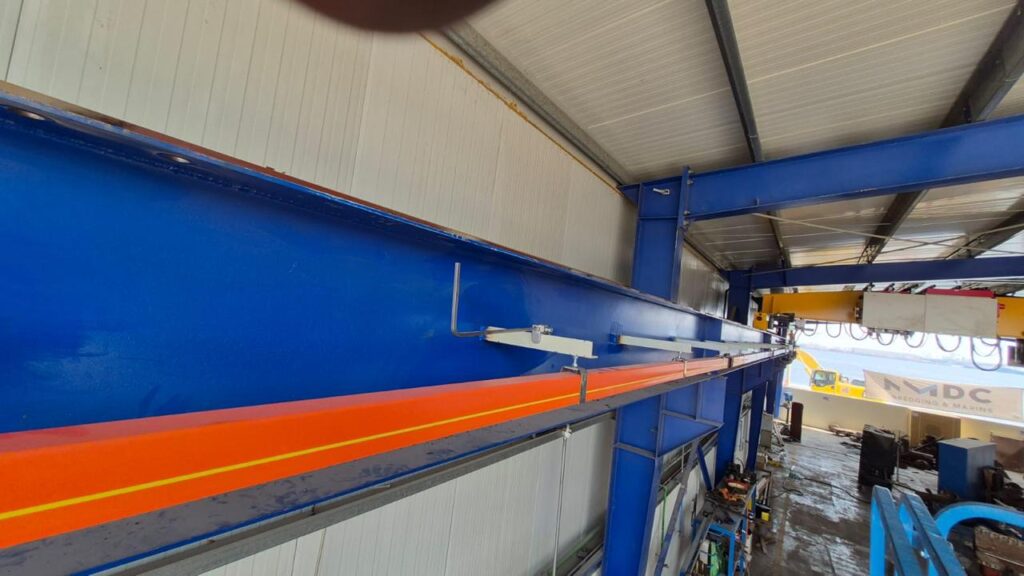

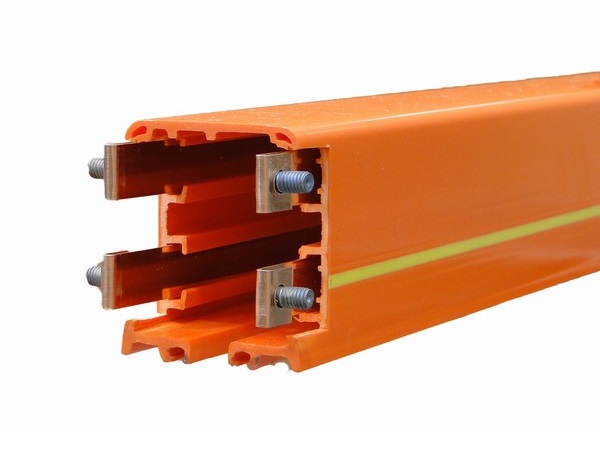

Enclosed Conductor Bar Systems

Developed with safety and reliability in mind, each model is touch-safe with copper conductors using an internal riding collector is installed inside an insulated housing
Increased safety due to enclosed design•
Compact and lightweight for reduced support and space needs•
Enclosed design protects against environmental concerns•
Curve & specialty sections available for custom applications•

CONTACT NOW

Energy Chains

To avoid the maintenance and costs that come with festoons, crane manufacturers are increasingly using an alternative electrification system – the energy chain. Made from high-performance, engineering plastic, energy chains can take on demanding operating environments with their corrosion and wear resistant features, yet have a simple design and are, therefore, very easy to install

CONTACT NOW

Festoon System

Festoon systems are mobile supports for electrical cables or pneumatic and hydraulic lines that allow the cable to move with a hoist, trolley, or other mobile equipment without fouling. Festoon systems come in a variety of sizes and configurations to handle round or flat cables
Festoon systems typically come with different clips or clamps depending on the types of cables and hoses they are organizing. A typical festoon system consists of an end clamp that secures the cables at one non-moving end, a control unit that moves back and forth either manually or is controlled by a machine, and a series of trolleys or reels that support the moving cables and keep them secure during the machine’s operation. Festoon systems are differentiated by speed, load, and range of motion. A festoon cable system is frequently used to ensure that machines in motion continue to receive electrification and compressed air or hydraulic fluid during operation. A cable support system is also frequently used for conveyor machinery or gantry cranes where a pinched cable or air hose can cause the machinery to shut down
Festoon systems also include track-based systems that have sliding cable carriers. Cable festoons support flat or round cables in a series of cable carriers that move freely along a C-shaped or I-beam track. A cable festoon track system can be designed for use in harsh or corrosive environments, using stainless steel for the track system and stainless steel, galvanized steel or aluminum for the carriers to provide corrosion resistance in acidic environments

CONTACT NOW

Single Pole Conductor System

The usual applications of this conductor rail programme are travelling cranes, loading bridges, units for container traffic, people mover systems and special installations
Any numbers of poles can be installed vertically or horizontally, on straight or curved systems. The conductor rail system can be installed indoor or outdoor. The entire conductor rail system is insulated to current Safety Regulations, it is entirely protected against direct contact. The earth insulation cover is marked yellow-green on both sides over the entire length of the rail
The spring operated insulated collectors can accomodate vertical/horizontal misalignment and are available in single or double versions. Collectors can be supplied for use in vertical or horizontal applications and for discontinuous systems. The earth collector is colour identified and not interchangeable with a phase collector
Installation of the conductor rail system is simple; maintenance is confined to a routine check of the collectors. Collector shoes can be changed quickly and safely

CONTACT NOW

Cable Reel

Power mobile equipment with motorised reels to ensure the safe and reliable transmission of power and data
• Motor (with drive) Standard squirrel cage or torque motors,   according to IEC Norms
• Collector Standard sizes of collectors are available for power and    signals
• The drums are composed of standard elements and can easily   be adjusted to required widths. Standard drum diameters range   from 300mm to 8700mm

CONTACT NOW
